  • Shear Beam Load Cell

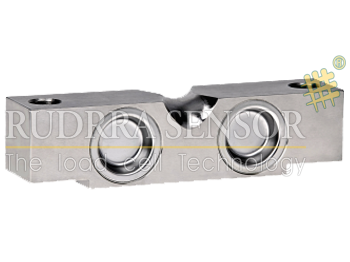

    Our customer can avail from us a supreme range of Shear Beam Load Cell specially manufactured from quality stainless steel material at our ultra-modern plant. These high tensile strength products are used in various suitable industrial applications. Our clients can find them in different capacities ranging from 1,000 ibs to 20,000 ibs. These are strain gauge based and used in low profile platform scale and tanks. We special care for the quality of the product as this is our main goal. Our experts make it user-friendly with complete environment protection and can work in different environment conditions. While making this product we use only tested and approved quality raw material so that our customer can enjoy the real benefit of the product.

    Rudrra Sensor offers this shear beam load cell as RSL 803 to the client. Using advanced manufacturing technique we make this product at Ahmedabad and supply across the globe. Our components follow international norms and so it's always appreciated in the market. Our buyer can get them in bulk quantity at reasonable price.

  • Applications

    • Large size Floor Scales and platform scales
    • Tank weighing
    • Hopper weighing
    • Conveyor scales

  • Diagram

    Shear Beam Load Cell - Diagram

    Dimentions

    Shear Beam Load Cell - Dimentions

    Rated Load (t) A B C D E M d2 d1
    0.5-2 130 31.8 15.8 25.4 76.2 M12*1.75 19.8 13.5
    3T, 5T 171.5 38.1 19.8 38.1 95.3 M18*1.5 19.5 13.51
    10T 225.5 50.8 25.3 50.8 124 M24*2 27 27

  • Features

    • Wide range of capacities from 100kg to 10000kg
    • Alloy steel construction
    • Environmental Protection IP68 with complete hermetic sealing
    • Calibration in mV/V
    • Low profile design

  • Dimenstions

    Related Load (kg.) 100, 200, 300, 500, 750, 1T, 2T, 3T, 5T, 10T
    Precision C3 Insulation Resistance(M Ω)≥5000(100VDC)
    Composition Error± 0.02 Excitation Voltage (V)9~12 (DC)
    Rated Output (mv/v)3 ± 0.002 Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-20~+55
    Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.019
    Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.011
    Creep (%FS/30min)0.016 Safe Overload (%FS)120
    Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
    Input Resistance (Ω)350 ± 5 Defend GradeIP68
    Output Resistance (Ω)350 ± 3 Cable4mm, 3mtr
