    Compression Load Cell

    With decade year of experience, Rudrra Sensor is manufacturing a large array of Compression Load Cell used for various weighing functions. This multicolumn constructed product is available in various technologies and sizes which is designed for different industrial needs. This product is also available as Column Type Load Cell and model name RS3. It is a strain gauge based product which is also available in self restoring design. This compact and low profile load cell is widely used for various testing applications. They are made from quality stainless steel which is suitable for use in the toughest industrial environment.

    We are well equipped with all latest production and quality testing equipments that enable us to design world class standard products along with customization. These types of load cells are ideally suited for silos weighing and other measurement purpose. Verity of industries is using our products for different applications. These compression load cells are completely environment protected and able to bear overloading capacity. It is worldwide appreciated because of its self centering column design.

  • Applications

    • Hopper, Tank, Silo Weighing
    • Truck Weighing
    • Weigh Bridge Scale

  • Diagram

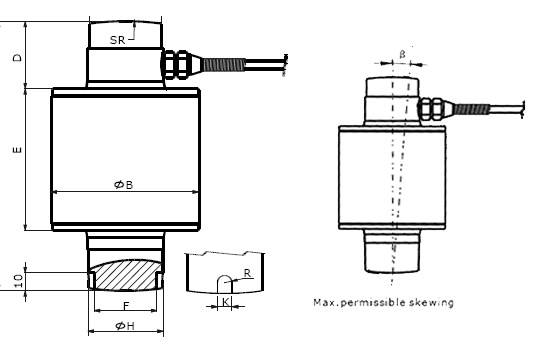

    Compression Load Cell - Diagram

    Dimentions

    Compression Load Cell - Dimentions

    Capacity/Size

    A

    B

    C

    D

    E

    F

    H

    K

    SR

    10  ̴30t

    150

    82

    40

    38

    82

    34.7

    41.7

    8

    150

    40  ̴60t

    170

    88

    53

    47

    95

    43

    53

    10

    200

  • Features

    • Wide range of capacities 7.5 t to 300 t
    • Stainless steel construction
    • Environmental Protection IP68 with complete hermetic sealing
    • Self restoring design

  • Dimenstions

    Item/Parameter C3 Unit
    Rated load (Ton): 10,20,30,40,50,60 t
    Maximal numbers of load cell verification Intervals (NIc): 0.01 % of rated load
    Rated output (Cn): 2.0 ± 0.1% mV/V
    *Combined error: 0.015 ± % of rated output
    Temperature effect on sensitivity (Tkc): 0.0012 ± % of rated output°C
    Temperature effect on zero balance (Tk0): 0.0008 ± % of rated output°C
    Zero balance: 1.0 ± % of rated output
    Input balance: 775 ± 5 Ω (Ohms)
    Output resistance (Ro): 702 ± 2 Ω (Ohms)
    Insulation resistance: ≥ 5000 M Ω (Mega-Ohms)
    Safe overload: 150 ± % of rated capability
    Ultimate overload: 300 ± % of rated capability
    Operating temperature range: -20 ̴+70/-20 ̴+160 °C / °F
    Recommend excitation: 8 ̴15 V(DC or AC)
    Maximum excitation: 24 V(DC or AC)
    Material of elastomer: Stainless Steel
    Protection class: IP67/IP68
