    Two Hole Load Cell

    When it comes to manufacturing wide assortment of highly advanced Two Hole Load Cell (RSL 650), Rudrra Sensor dominates the industry with the exceptional qualities. The advanced designs supremely backed by the innovative features have been the most selling points of these products.

    Structured with excellent aluminum alloy materials, the futuristic two hole load cell has been created to improve productivity. Equipped with the single point off center load measuring technology, it is skilled at measuring load with absolute perfection.

    The tensile strength and precision finish endows it longevity. Developed to be an ultra-efficient technology, it requires very low maintenance.

    Emphasizing on the need to have a comprehensive array of models, the load cell manufacturer, supplier and exporter make sure clients have the luxury of choosing what’s best suited to their industry by providing both standard and customized solutions.

  • Applications

    • Check weighers (suggested platform size 400x400mm)
    • Bench, counting and postal scales
  • Diagram

    Two Hole Load Cell- diagram

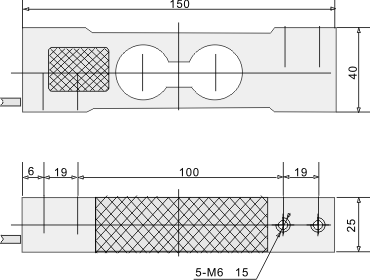

    Two Hole Load Cell - dimensions

  • Features

    • Advanced designs
    • Innovative features
    • Single point off center technology
    • Comprehensive array of models
  • Dimenstions

    Related Load (kg.) 5, 10, 15, 20, 50, 100, 200
    Precision C2 / C3 Insulation Resistance(MΩ)≥5000(100VDC)
    Composition Error0.03 / 0.02 Excitation Voltage (V)9~12 (DC)
    Rated Output (mv/v)2 ± 5 Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-35~+65
    Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
    Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.03 / 0.017
    Creep (%FS/30min)0.02 Safe Overload (%FS)120
    Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
    Input Resistance (Ω)400 ± 10 Defend GradeIP65
    Output Resistance (Ω)350 ± 2 Cable4mm, 3mtr
