    Testing Machine Load Cell

    Rudrra Sensor has continued to thrive on the superior performance of its most comprehensive range of Testing Machine Load Cell (RSL 203) in the market. As the premier manufacturer, supplier and exporter of the load cell technology, it ensures the RSL 203 model has every quality a client can ask for.

    Created with the use of premium stainless steel materials, the advanced testing machine load cell has been engineered to be used in various weighing applications. The compact structure allows it to remain at its top quality and be able to deliver the best result under difficult conditions. Having incomparable tensile strength, it lasts long.

    Being waterproof, abrasion resistant and anti-corrosion are some of the biggest selling points of this highly elegant load cell. It is comparatively easy to install and remove. Being available in multiple sizes and exclusive models, it offers many options to clients. Customized solutions are also presented to meet every industrial need.

  • Applications

    • Hopper scales
    • Electronic weighing machines
    • Electronic truck scales
  • Diagram

    Pancake Load Cell - Diagram Pancake Load Cell - Diagram

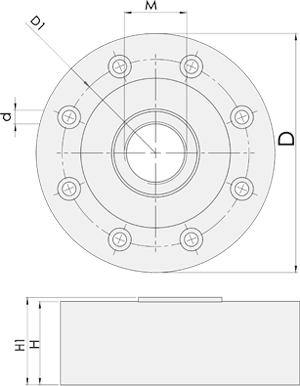

    Dimentions

    Pancake Load Cell - Dimentions

    Capacity D D1 d M H H1
    200kg to 5000kg 105 90 6.2*8 M16*1.5 32 36
    10000kg&15000kg 115 90 10.2*8 M30*2 40 42
    20T to 30T 155 125 16.5*8 M39*2 50 52
    50T 205 165 16.5*8 M48*2 60 65
    100T 280 222 20.5*8 M72*2 90 95
  • Features

    • Compact structure
    • Engineered to be used in various weighing applications
    • Easy to install and remove
    • Available in multiple sizes and exclusive models
  • Dimenstions

    Related Load (Ton) 0.2, 0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100
    Precision      C2    Insulation Resistance(MΩ)      ≥5000(100VDC)
    Composition Error      ± 0.03    Excitation Voltage (V)      9~12 (DC)
    Rated Output (mv/v)      2 ± 0.008    Compensated temp. Range (°C)      -10~+40
    Non-Linearity (%FS)      0.017    Use Temp. Range (°C)      -20~+55
    Hysteresis (%FS)      0.02    Temp. Effect on Zero (%FS/10°C)      0.05
    Repeatability (%FS)      0.01    Temp. Effect on Span (%FS/10°C)      0.03
    Creep (%FS/30min)      0.03    Safe Overload (%FS)      150
    Zero Balance (%FS)      ± 1    Ultimate Overload (%FS)      200
    Input Resistance (Ω)      750 ± 10    Defend Grade      IP66
    Output Resistance (Ω)      700 ± 5    Cable      6mm, 10mtr
