    Tension Load Cell

    Rudrra Sensor offers an extensive range of high quality Tension Load Cell specially designed for various industrial applications. These are manufactured as per industrial and international norms and standards by our expert engineers. We supply them in different capacities ranging from 1 to 20 tones along with customized solutions. We develop them using ultra-modern technology which capable to work in any environment conditions. This component is available under the model name RSL 304. The product is widely suitable for tension weight measurement and testing applications. They are widely popular in domestic as well as international market for their optimum and unmatched performance.

    Rudrra sensor is highly acclaimed for supplying a complete range of Tension Load Cell to a number of companies in India and across. They are rugged constructed and strictly tested on various quality parameters along with laboratory test tensure its durable performance. These multipurpose load cells are alsoffered in different sizes, design and technologies as per customer's different industrial requirement.

  • Applications

    • Tension & or Compression Dynamometer
    • Hanging Scale Hopper
    • Tank, Silo Weighing
    • Lifting Equipment
    • Materials Testing
  • Diagram

    Tension Load Cell - Diagram

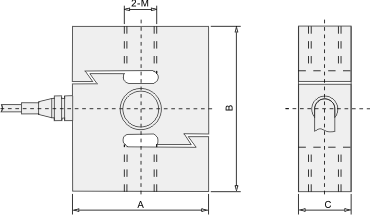

    Tension Load Cell - Dimentions

  • Capacity A B C M
    2~5t 95 108 25 M18x1.5 / 3/4-116UNF
    7.5~10t 125 175 50 M30x2 / 5/4-12UNF
    20t 150 188 60 M39x2 / 3/2-12UNF
  • Features

    • Available from 5000Kgf to 20,000Kgf capacities
    • It is hermetically sealed to IP68
    • Universal type load cell for tension and compression load
  • Dimenstions

    Related Load (Ton) 1 / 1.5 / 2 / 5 / 7.5 / 10 / 20
    PrecisionC2 Excitation Voltage (V)9~12 (DC)
    Composition Error± 0.03 Compensated temp. Range (°C)-10~+40
    Rated Output (mv/v)2.0 ± 0.004 & 3.0 ± 0.004 Use Temp. Range (°C)-10~+55
    Creep (%FS/30min)± 0.024 Temp. Effect on Zer(%FS/10°C)± 0.023
    ZerBalance (%FS)1.0 Temp. Effect on Span (%FS/10°C)± 0.017
    Input Resistance (Ω)390 ± 10 Safe Overload (%FS)150
    Output Resistance (Ω)350 ± 2 Ultimate Overload (%FS)200
    Insulation Resistance (MΩ)5000 Defend GradeIP66
