    Packing Machine Load Cell

    New Packaging mechanism are uniformly being evolved to supply more appealing packs as well as it increases protection as shelf life. We are playing an active part in discovering unique priceless marketing benefits through packaging innovations.

    We are the pioneer in manufacturing and supplying the Packing Machine Load Cell. A brainy load cell is the hook line and sinker of your packaging, catalogue machine. With the advanced Packing Machine Load Cell from loadcell.in you earn resolution that commute the heartbeat of your influential counterbalance. Incorporates mountable mechanics possessions at a competing prices. This enables you to lessen the prices of your packaging structure markedly this opening up entirely new market system.

    We are constituent supplier only for weighing automation. We are trustworthy partner around the world for dependable delivery. We are close to you with a strong sales and service team to help answer any of your question.

  • Specification

    • Low Profile
    • Large capacity range
    • In the direction of compression and tension
    • Anodized aluminium alloy
    • In measuring area coated with silicon
    • Special shielded cable
    • Off-axis high strength to resist the forces
  • Diagram

    Packing Machine Load Cell - diagram

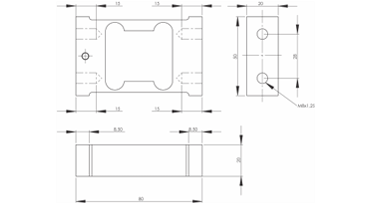

    Packing Machine Load Cell - dimensions

  • Dimenstions

    Related Load (kg.) 3, 5, 6, 10, 15, 20, 25, 30, 35, 40, 45
    Accuracy class C3 Temparature range safe(°C) -30/+70
    Capacity / Emax (kg)8,20 Maximum safe central overload (%R.O)150
    Minimum dead load (%R.O)0 Ultimate central overload (%R.O)300
    Rated Output (m V/V)2,0 Excitation (V)5
    Maximum number of load cell interval Nmax1000,3000 Input impedance(Ω)395 ± 20
    VminEmax/4000 Output impedance(Ω)350 ± 3
    Emax/Vmin4000,1000 Insulation resistance (MΩ)>1000
    Minimum dead load output return (%R.O)< ± 0,0500 Constructionanodized aluminium aloy
    Zero Balance (%R.O) ± 1 Environment ProtectionIP67
    Temparature effect on Zero (% R.O/5 °C)< ± 0.015 Cable Type4x0,22mm
    Temparature effect on Output (% R.O/5 °C)< ± 0.017 Cable length0,5 m
    Compensated temparature range ( °C)-10/+40 Platform30x30 cm
