    Miniature Load Cell

    Considered to be the major player in the load cell technology industry, Rudrra Sensor manufactures most demanding range of Miniature Load Cell (RSL 651). Built with the aluminum alloy, it is incredibly robust as far as construction and performance is constructed.

    With excellent finish, dimensional accuracy, it has been developed to be a highly productive tool. The advanced miniature load cell has up to 100, 000 divisions having excellent precision.

    It is recommended for single point 200x200mm platform. The IP66 protection sets it apart. The much needed protection from damage and exceptional built-up make it one of its own kind.

    Keeping the specific requirements of clients in mind, we offer both standard and customized solutions to best meet the demand. Being the noted supplier and exporter, we ensure our clients have the best satisfaction with the quality of our products.

  • Applications

    • Small bagging machineries
    • Jewellery scales
    • Diamond scales
    • Thread tension measurement
  • Diagram

    Miniature Load Cell- diagram

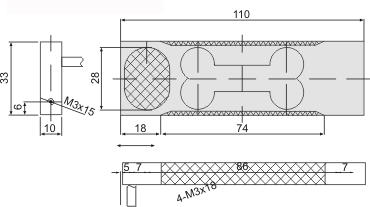

    Dimentions

    Miniature Load Cell - dimensions

  • Features

    • Highly productive
    • 100, 000 divisions having remarkable precision
    • Single point 200x200mm platform
    • Both standard and customized solutions
  • Dimenstions

    Related Load (kg.) 5, 10, 15, 20, 50, 100, 200
    Precision C2 / C3 Insulation Resistance(MΩ)≥5000(100VDC)
    Composition Error0.03 / 0.02 Excitation Voltage (V)9~12 (DC)
    Rated Output (mv/v)2 ± 5 Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-35~+65
    Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
    Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.03 / 0.017
    Creep (%FS/30min)0.02 Safe Overload (%FS)120
    Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
    Input Resistance (Ω)400 ± 10 Defend GradeIP65
    Output Resistance (Ω)350 ± 2 Cable4mm, 3mtr
