Miniature Compression Load Cell Manufactures

Miniature Compression Load Cell Download

Rudrra Sensor manufactures, supplies and exports the highly advanced range of Miniature Compression Load Cell (RSL 616M). Built with the best stainless steel materials and loaded with the latest features, the RSL 616M model specializes in weight checking.
The ultra-strong construction allows it to remain at the top quality for long. The standard compression load cell has been developed to have the complete environmental protection IP65. It is able to safeguard itself from shock or damage. The modern load cell is excellent in providing maximum output-- 2.0 m V/V available.
To fulfill various industrial demands with absolute precision, we offer this model in many capacities ranging from 50KG to 1000KG. Apart from the standard solutions, customized options are also on offer based on specific needs.
Applications
- Weight checking machines
- Bench counting
- Postal scales
Diagram

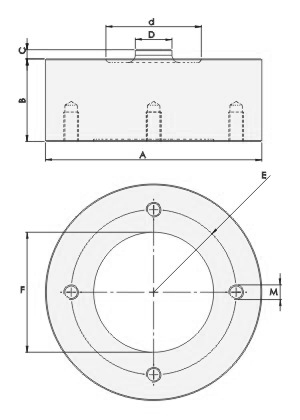

Dimentions

Features
- Ultra-strong construction
- Maximum output-- 2.0 m V/V available
- Capacities range from 50KG to 1000KG
- Complete environmental protection IP65

Capacities (Kgs.) : 50,100, 200, 500, 1000	Excitation Voltage : 10 VDC - Maximum 15 VDC
Nominal Output : 2.0 mV/V	Non - Linearity : < ± 0.1 % FSO (Full Scale Output)
Hysteresis : < ± 0.1 % FSO	Non-Repeatability : < ± 0.1 % FSO
Creep (30 minutes) : < ± 0.03 % FSO	Input Resistance : 390 ± 10 Ohms
Output Resistance: 350 ± 3 Ohms	Insulation Resistance (50V) : > 1000 Mega Ohms
Cable Length (4 core) : 1.5 Mtr.	Safe Overload : 150 %
Ultimate Overload of Rated : 300 %	0 Temp. Compensated Range : 0-60 C
0 Temp. Effect on Output : < 0.005 % FSO/ C	0 Temp. Effect on Zero : < 0.005 % FSO/ C
Deflection : < 0.5 mm at FSO	Material of Construction : Stainless Steel-17-4 PH
Environmental Protection Class : IP65
