    Aluminum Load Cell

    Rudrra Sensor is the finest supplier & exporter of wide variety of Aluminum Load Cells (RSL 642). Being the trusted manufacturer of the innovative load cell technology, the brand solely focused on producing most advanced as well as efficient load cells.

    The superior aluminum load cell is prepared with the use of high quality raw materials. It is colorless anodized and has eye catching finish. The single point off center load measuring technology makes it ultra convenient to measure load. The easy operation allows it to be used with optimum ease.

    The power-packed construction assists it in lasting long. The latest technologies are equipped to offer best output without consuming much power. As it requires very less maintenance, clients don’t have to worry about keeping it ever-ready.

    Besides being available in wide assortments of designs and sizes, it is customized as well. It has been developed as per ISO standard.

  • Applications

    • Bench, counting and postal scales
    • Check weighing machineries ( suggested platform size 500x500)
  • Diagram

    Aluminum Load Cell - diagram

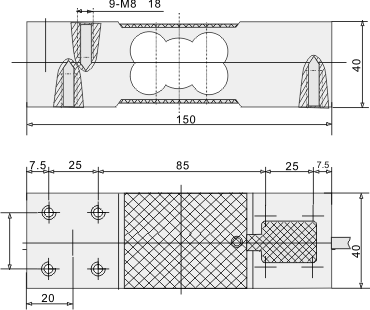

    Aluminum Load Cell - dimensions

  • Features

    • Power-packed construction
    • High quality raw materials
    • Colorless anodized
    • Eye catching finish
    • Single point off center load measuring technology
  • Dimenstions

    Related Load (kg.) 100, 200, 300, 500
    Precision C3 Insulation Resistance(MΩ) ≥5000(100VDC)
    Composition Error0.02 Excitation Voltage (V)9~12 (DC)
    Rated Output (mv/v)2 ± 5 Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.017 Use Temp. Range (°C)-35~+65
    Hysteresis (%FS)0.02 Temp. Effect on Zero (%FS/10°C)0.017
    Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.017
    Creep (%FS/30min)0.02 Safe Overload (%FS)120
    Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
    Input Resistance (Ω)400 ± 10 Defend GradeIP65
    Output Resistance (Ω)350 ± 2 Cable4mm, 3mtr
