    Table Top Load Cell

    Rudrra Sensor, known as the leader of load cell technology, manufactures, supplies & exports an array of Table Top Load Cells (RSL 601). Constructed with the use of aluminum alloy materials, they are colorless anodized.

    The advanced table top load cell is equipped with perfect load measuring capability. Boasting of the latest features that have been strategically developed to make the load measuring process super convenient, it is easy to use.

    The fitting installation technology allows it to be installed conveniently without any hassle. The superior matte finish endows it not only incredible strength but also extends its longevity.

    In order to make a perfect match with industrial needs, the next-generation load cell is available in several models and sizes. Moreover, it is constructed as per clients needs too. Prepared with IOS standards, it has the defining quality.

  • Applications

    • Check weighing applications (suggested platform size 250 X 350mm)
    • Bench counting as well as postal scales
  • Diagram

    Table Top Load Cell - diagram

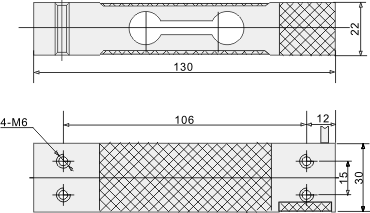

    Dimentions

    Table Top Load Cell - dimensions

  • Features

    • Prepared with IOS standards
    • Fitting installation technology
    • Perfect load measuring capability
    • Aluminum alloy materials
  • Dimenstions

    Related Load (kg.) 3, 5, 6, 10, 15, 20, 25, 30, 35, 40, 45
    Precision C2 / C3 Insulation Resistance(MΩ) ≥5000(100VDC)
    Composition Error 0.03 / 0.02 Excitation Voltage (V)9~12 (DC)
    Rated Output (mv/v) 2 ± 0.2 Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C) -35~+65
    Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
    Repeatability (%FS)0.01 Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
    Creep (%FS/30min)0.02 Safe Overload (%FS)120
    Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
    Input Resistance (Ω)400 ± 10 Defend GradeIP65
    Output Resistance (Ω) 350 ± 2 Cable4mm, 0.42mtr
